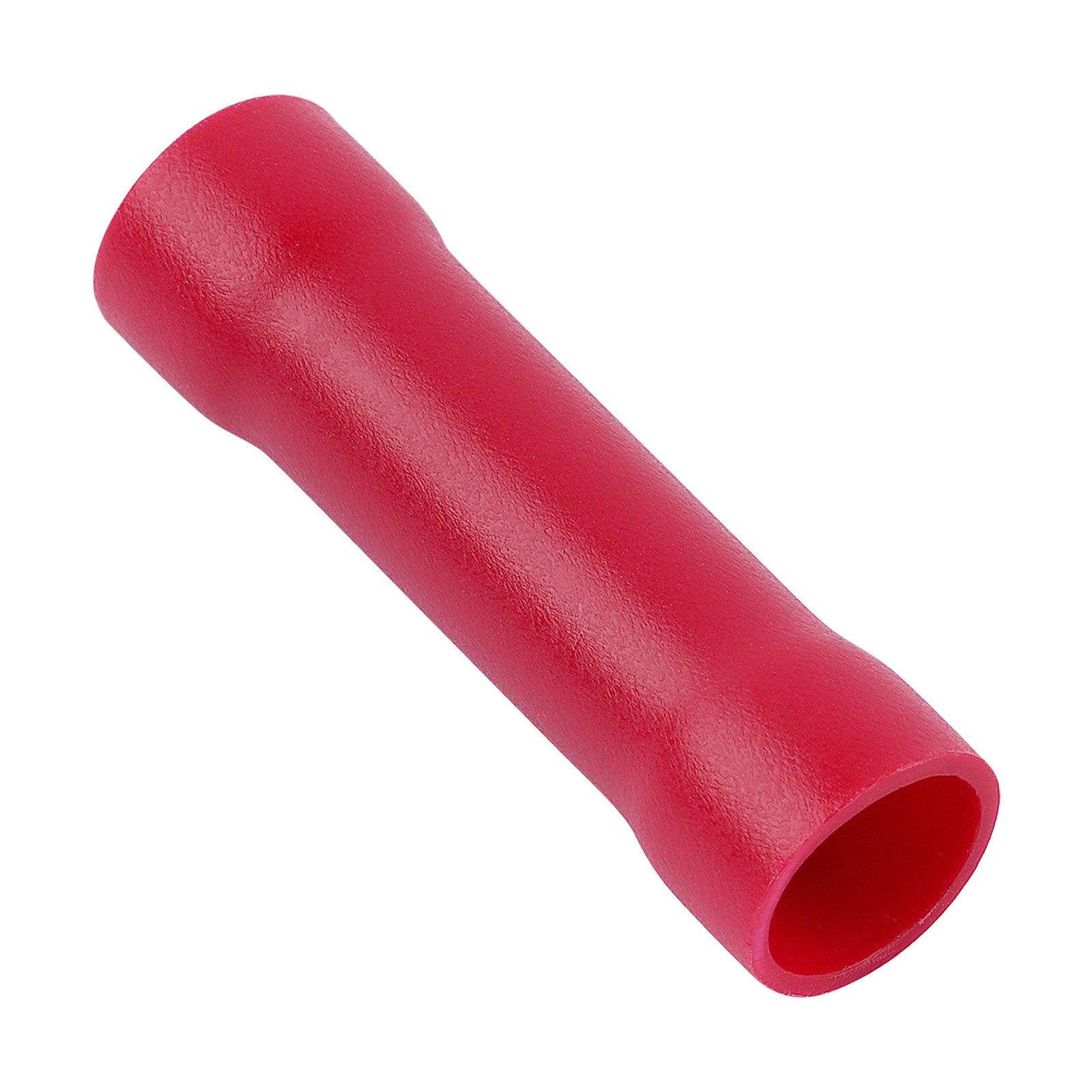

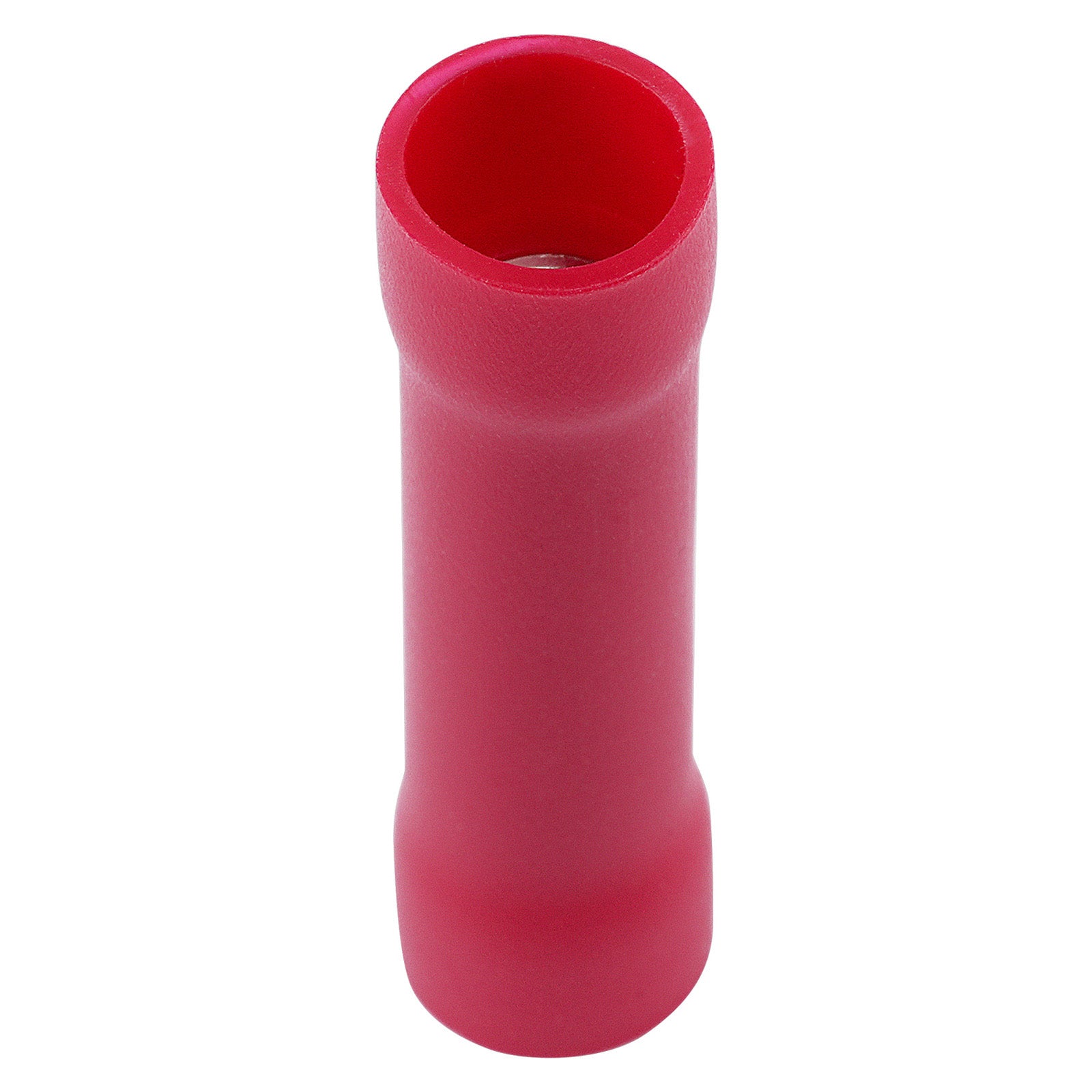

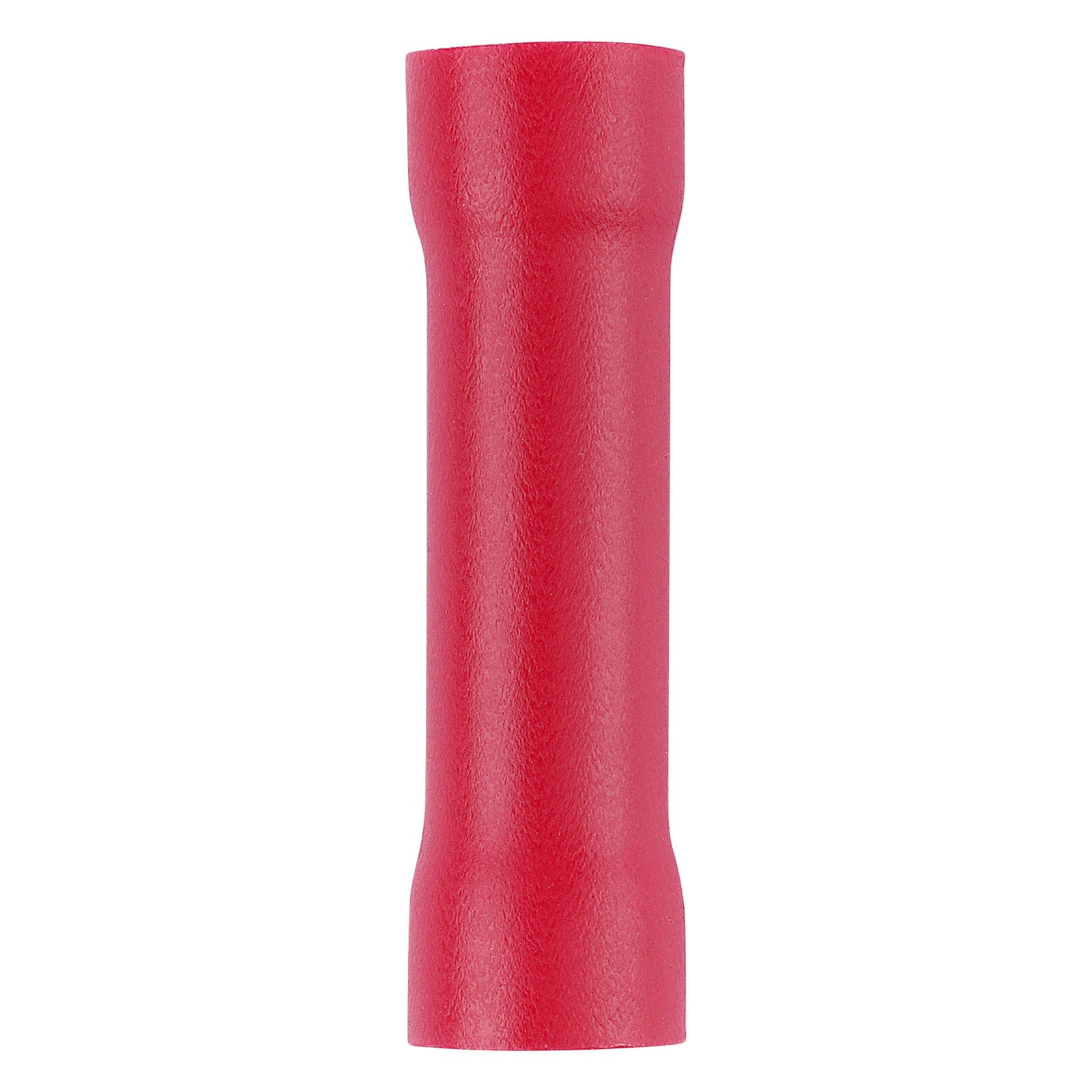

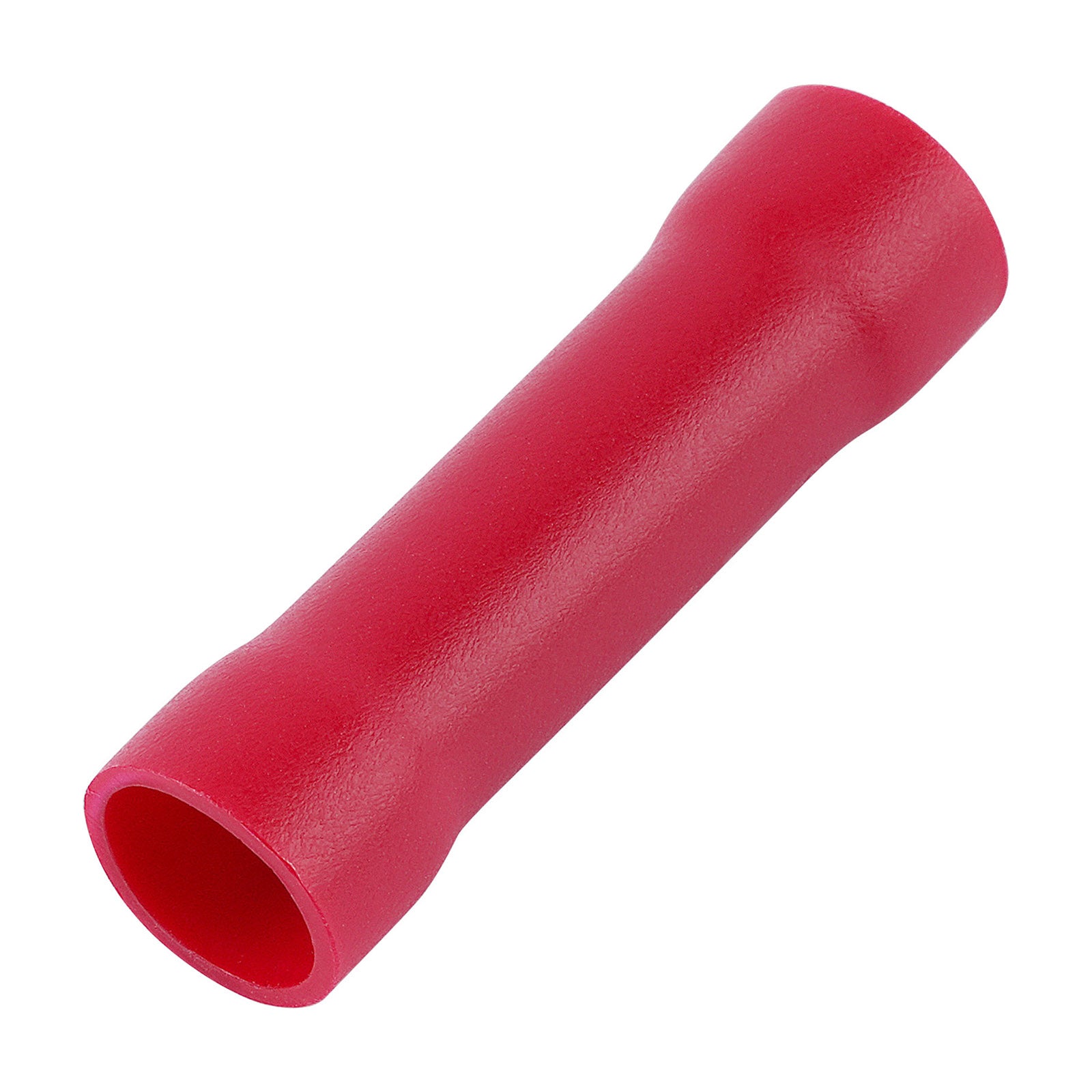

Nylon Fully Insulated #8 Red Butt Connector (ISX-BT-8)

Description:

Ensure strong, reliable electrical connections with our #8 AWG Nylon Fully Insulated Butt Connectors. Built with high-quality copper tubing for excellent conductivity and durability, these connectors are designed to handle higher current loads up to 62A. The rugged nylon insulation sleeve offers superior heat resistance, flexibility, and long-term performance compared to standard PVC alternatives. Ideal for automotive, marine, and industrial wiring applications, this heavy-duty connector delivers secure and efficient wire splicing every time.

Specifications:

• HEAVY-DUTY COPPER CORE & NYLON INSULATION: Constructed with premium copper tubing, this butt connector ensures outstanding electrical conductivity and resistance to corrosion. The nylon insulated sleeve provides enhanced heat resistance (up to 105°C), durability, and flexibility, making it ideal for demanding environments.
• HIGH CURRENT CAPACITY – UP TO 62A: Designed for #8 AWG wires, this connector supports significantly higher current loads, making it suitable for power-intensive applications such as automotive wiring, battery connections, and industrial equipment.
• SECURE CRIMP & RELIABLE CONNECTION: Features a precision barrel design for strong and stable crimping. Once properly crimped, wires remain firmly secured, reducing the risk of disconnection or electrical failure.
• EASY INSTALLATION: Simply insert the stripped wire into each end of the connector and crimp using a standard crimping tool. Quick and efficient installation saves time while ensuring a professional-grade connection.
• WIDE APPLICATION: Complies with standard electrical safety requirements (Ui=600V). Perfect for automotive, marine, electrical maintenance, wiring harness assembly, and heavy-duty cable repairs.
• AWG: #8, Dimension (L x DΦ x middle joint dΦ): 37 x 8 x 6mm, Max Current: 62A，Max Endurance: 105°C Ui=600V
• SOLD IN: Packs of 100 pcs
