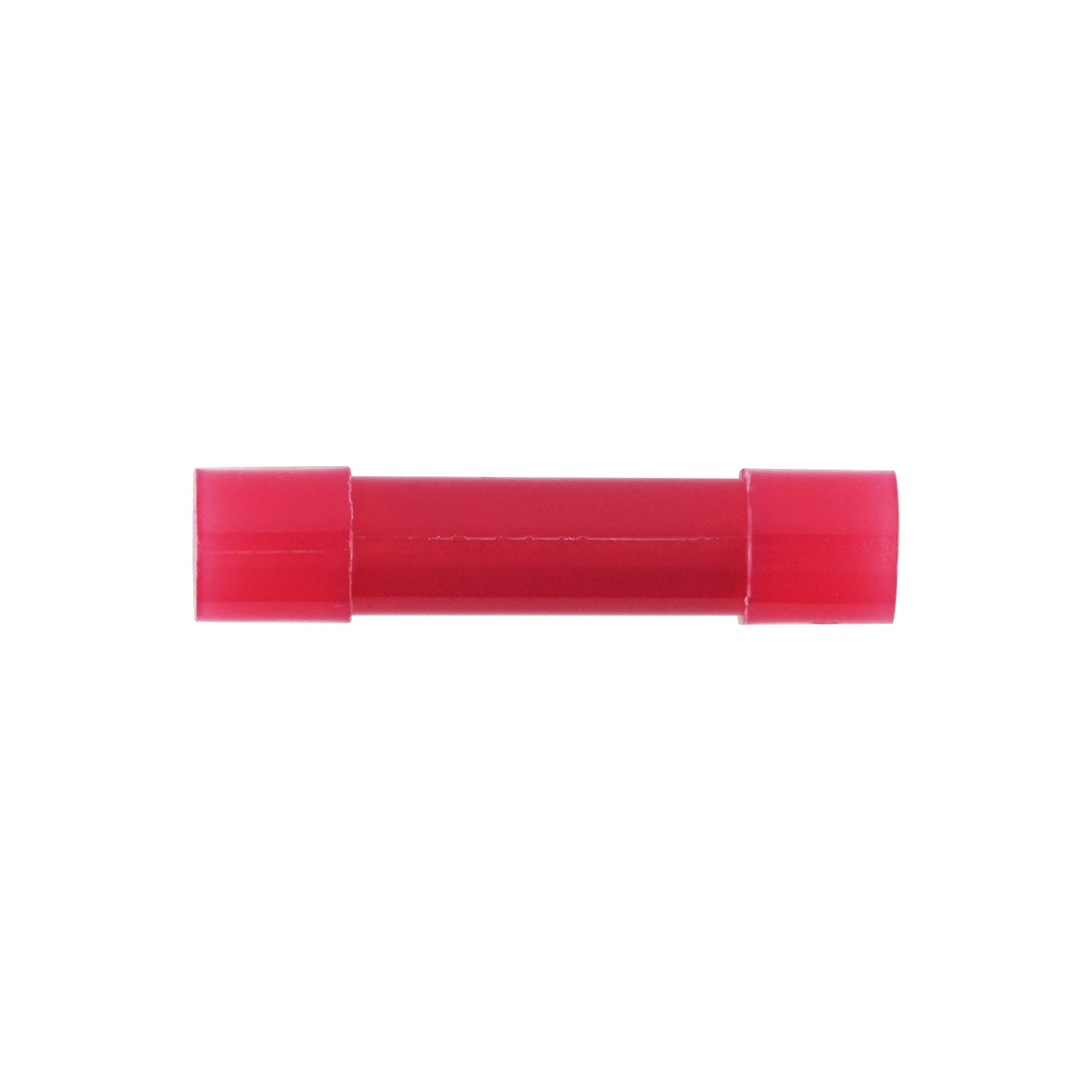

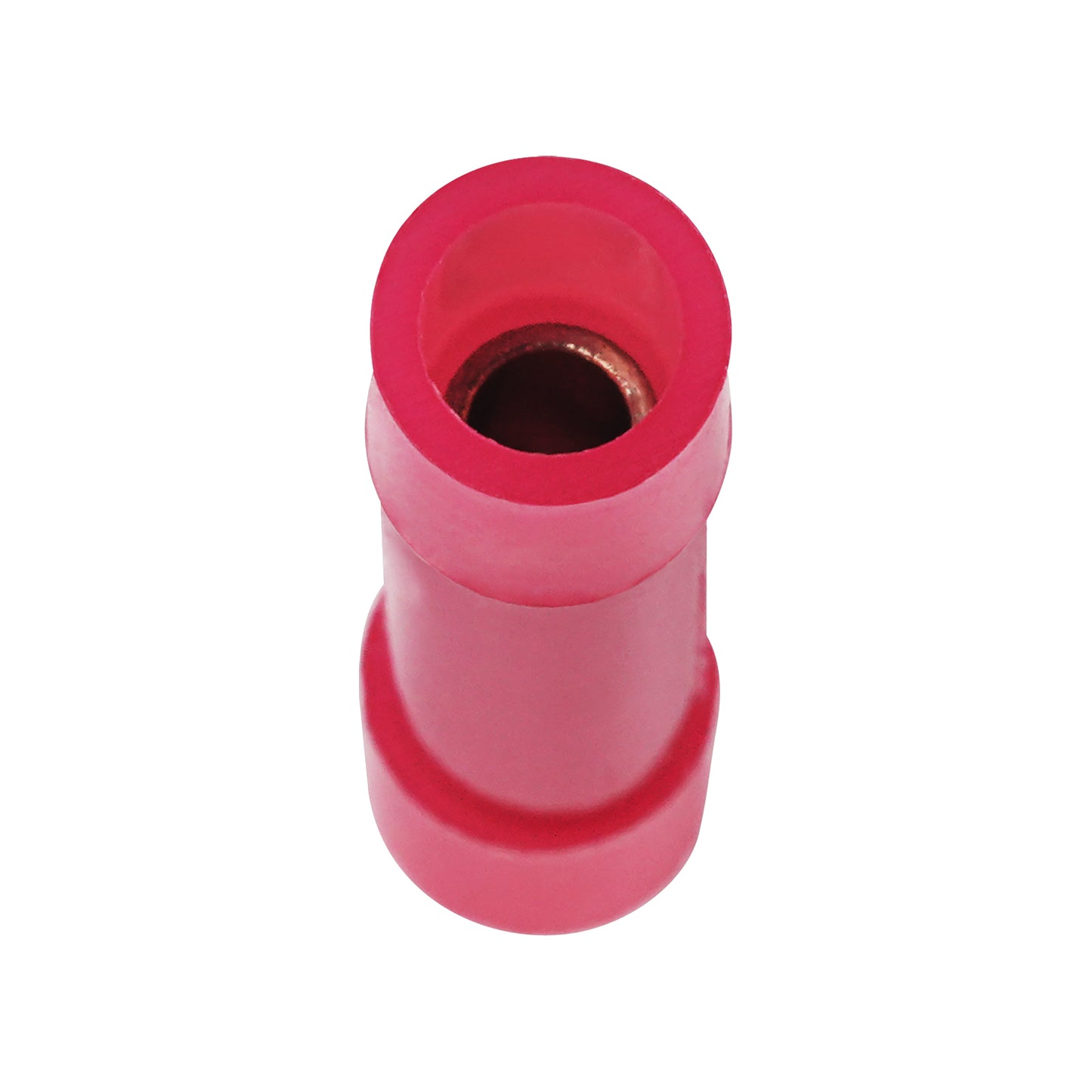

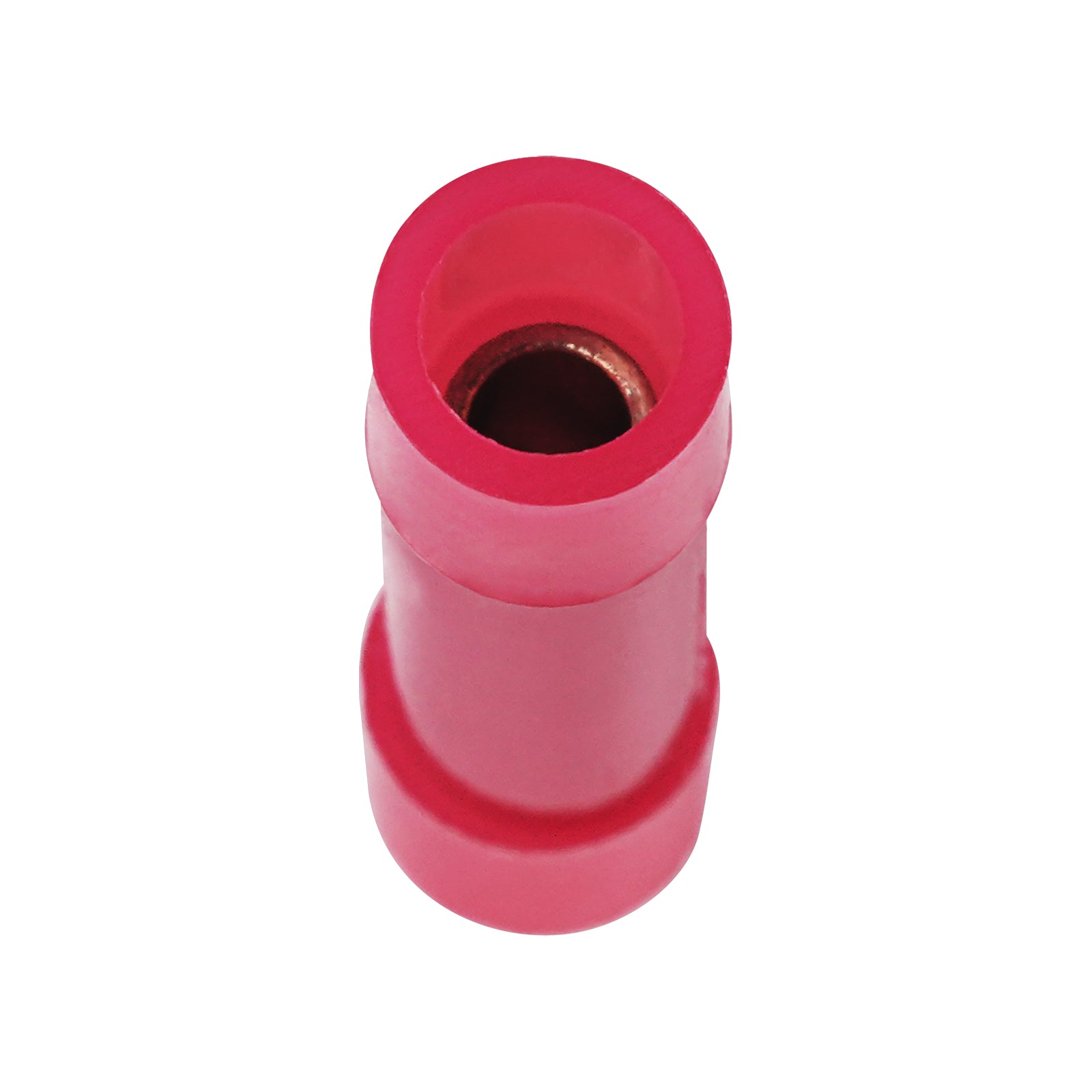

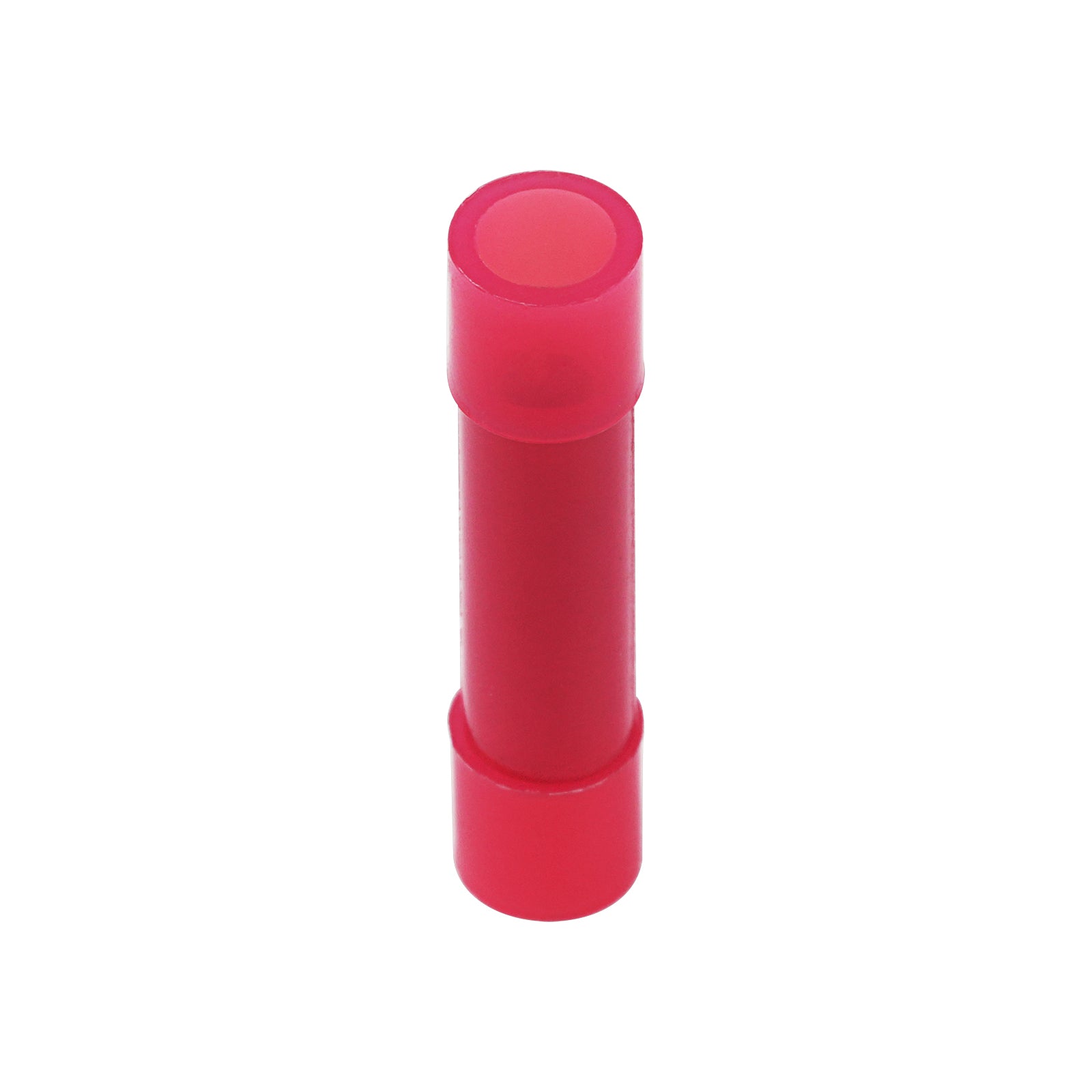

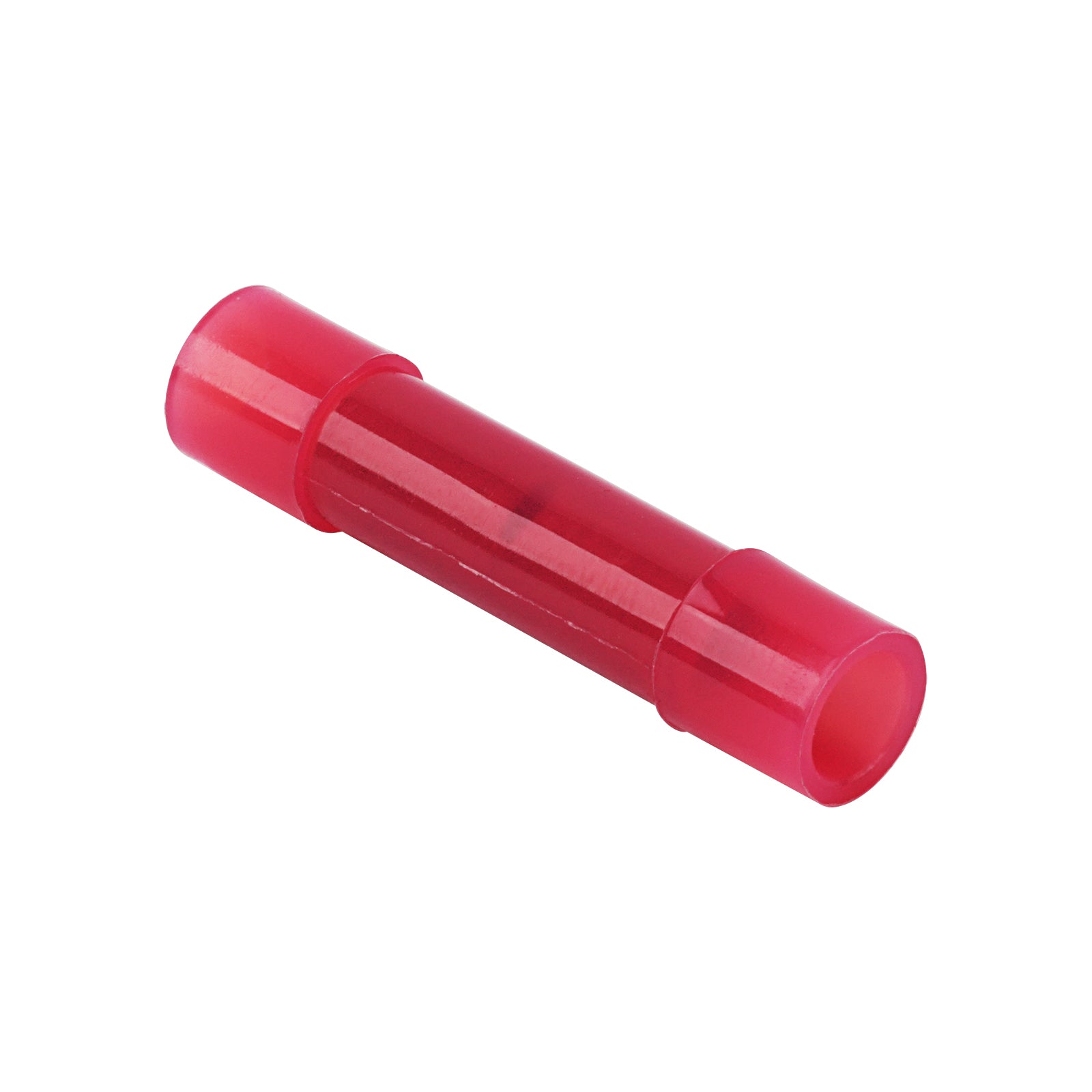

22 - 16 AWG Nylon Butt Connector (IS-BT-2218NL)

Description

Experience exceptional conductivity and reliable wire crimping with our 22-16 AWG Nylon Butt Connector made of high-quality red copper. Its robust nylon insulation can provide higher heat resistance, flexibility and durability, and it meets standard electrical safety guidelines. Easily crimp and connect with this terminal - just have your crimper ready! Discover the potential of your electrical projects with this must-have and versatile product!

Specifications

• QUALITY TINNED RED COPPER & ROBUST NYLON INSULATION: Constructed from high-quality red copper, our nylon butt connector guarantees superior conductivity and high resistance to corrosion and oxidation. In addition, the nylon insulated sleeve provides higher heat resistance, flexibility and durability in comparison to PVC-insulated alternatives, making it a preferred option for harsh environments
• AWG: 22-16 (Red), Wire Range: 0.5-1.5mm², Dimension (L x DΦ x middle joint dΦ): 27.3 x 3.2 x 1.7mm, Max Current: 19A，Max Endurance: 105°C Ui=600V
• EFFORTLESS INSERTION & STRONG CRIMPING: Our butt connector features flared barrel design to ensure easy insertion and strong wire crimping. Rest assured that once crimped, your wire will not be pulled out
• EASY TO USE: Insert stripped wire into one side of the splice barrel, then use a crimper for quick and accurate crimping. Repeat the process on the other side of the butt connector to finish proper wire connection
• WIDE APPLICATION: This nylon butt connector complies with all standard electrical guidelines for maximum safety and protection, making it a popular choice for both consumer and industrial use. It is ideal for connecting and repairing electrical wires and cables, as well as installing accessories for cars and processing car wiring harnesses
• SOLD IN: packs of 100 pcs
