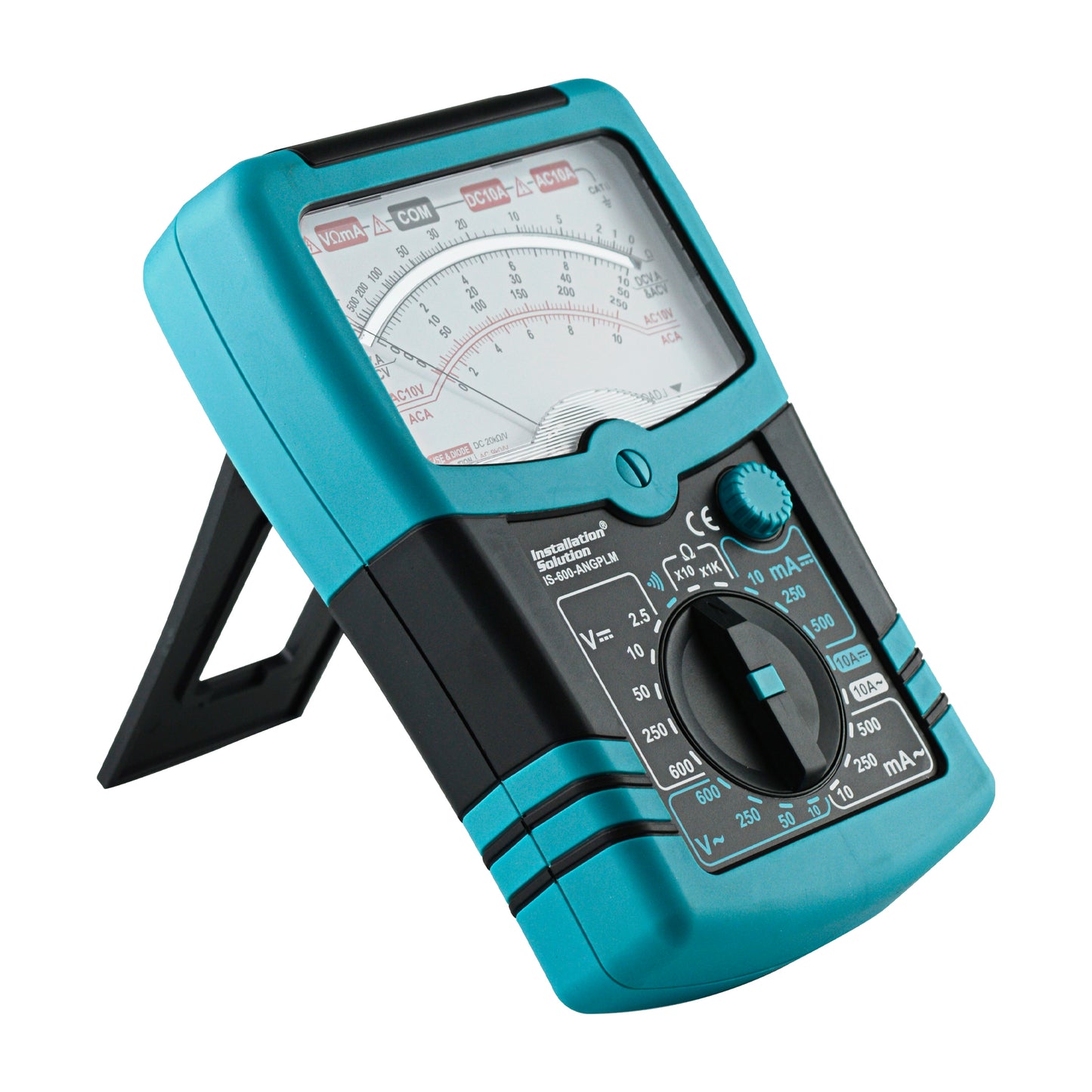

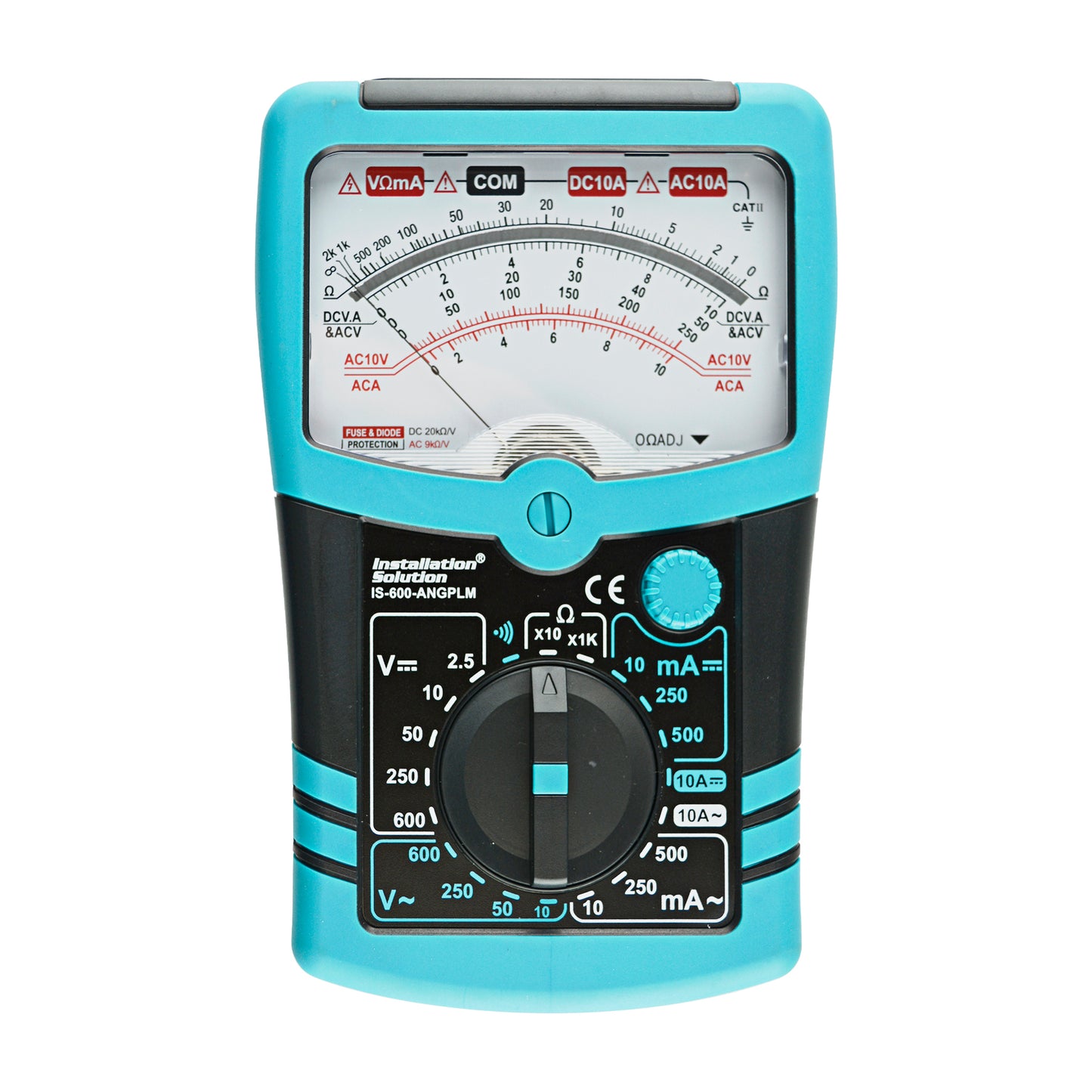

IS-600-ANGTAB - Analog Multimeter

• Voltage DC

      Ranges: 2.5/10/50/250/600V

      Accuracy at FSD: 4; (range 600V: 5)

      Sensitivity: 20kΩ/V

• Voltage AC

      Ranges: 10/50/250/600V

      Accuracy at FSD: 4; (range 600V: 5)

      Frequency Response: 60~400Hz

      Sensitivity: 9kΩ/V

• Current DC

      Ranges: 10mA/250mA/500mA/10A

      Accuracy at FSD: 4

• Current AC:

      Ranges: 10mA/250mA/500mA/10A

      Accuracy at FSD: 4

      Frequency Response: 60~400Hz

• Resistance: R x 10 / R x 1kΩ
• Continuity: <30Ω
• AC/DC: 10A
• Requires 3 X 1.5V(AAA) batteries (not included)
• Operating Temperature: 0~50°C, <85%RH
• Storage Temperature: -5~50°C, <85%RH
• Dimension: 173 x 111 x 43mm (6.8” x 4.4” x 1.7”)
• Weight: 328g / 0.72lbs
