Intelligent Battery Charger (TRBM-1224-6A)

Description:

The Intelligent Battery Charger (TRBM-1224-6A) efficiently charges 12V & 24V lead-acid batteries (WET, MF, AGM, and GEL) with selectable input voltage of 110V AC, 60Hz or 230V AC, 50Hz, delivering precise output voltage and current, with IP65 housing protection ensuring dust and splash proof operation across a wide temperature range from -20°C to +40°C (-4°F to 104°F).

Product Specifications:

• OPTIMAL PERFORMANCE: Utilizing state of the art technology, this battery charger with 6 steps enables the recharging of batteries to almost 100% of their original capacity. With its professional and objective approach, it provides maximum reliability and performance for your battery needs.
• AUTOMATIC FUNCTION: This battery charger can automatically diagnose, recover, charge and maintain batteries for months, fully automatic operation from charge to maintenance modes.

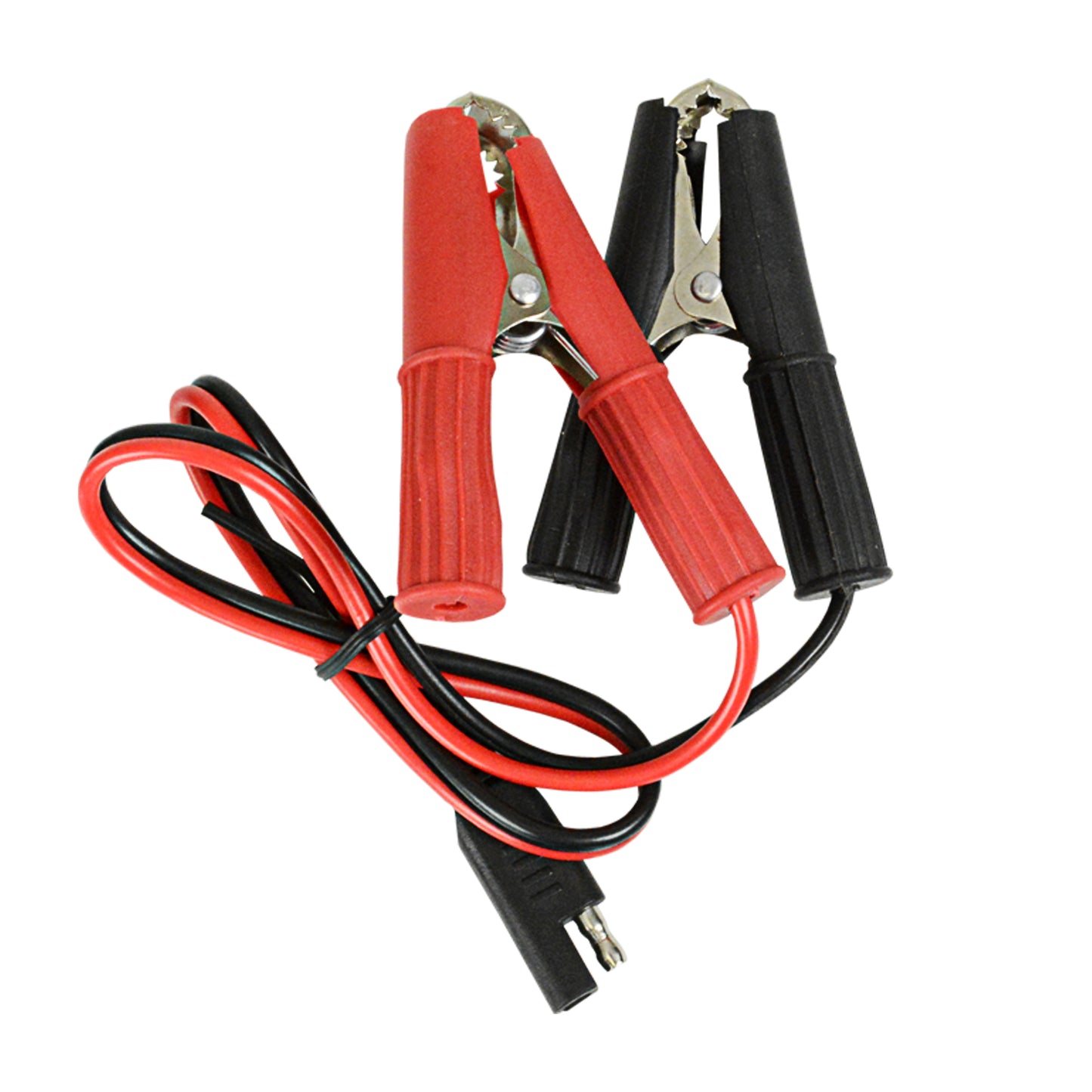

• HEAVY DUTY: This battery charger includes heavy-duty cables and two alligator clips, ensuring superior conductivity.
• MULTI-PROTECTION: The built-in circuit protection of the battery charger efficiently prevents over-charging, over-discharging, over-current, over-temperature and short-circuit, ensuring a safer and more reliable battery charging.
• HIGH SAFETY: Boasting a dust and splash-proof housing with an IP65 rating, it provides reliable protection for your battery. Keep your device powered with peace of mind, even in harsh environments.
• ENERGY SAVING AND SPARK FREE: When in standby mode, there is no output. Connecting with the battery will not cause any battery drain. To ensure safety, the lead connection is spark proof.
• EASY OPERATION: This battery charger is designed to be user-friendly, simply connect the terminal rings or clamps directly to the connectors on the battery posts, the device will activate automatically.
• STATUS LED INDICATORS: This battery charger is equipped with the LED indicators for easy monitoring of the battery charging level, allowing you to enjoy a hassle-free charging experience.
• UNIVERSAL APPLICATION: This universal battery charger is suitable for 12V and 24V lead-acid batteries, making it highly versatile and compatible with a wide range of applications.
• INPUT VOLTAGE: 110V AC, 60Hz or 230V AC, 50Hz
• OUTPUT VOLTAGE: 12V & 24V (auto - select)
• EFFICIENCY: > 75%
• CHARGING VOLTAGE: 28.8V ± 0.25V, or 29.4V ± 0.25V or 14.4V ± 0.25V or 13.6V ± 0.25V or 16.5V ± 0.25V
• CHARGING CURRENT: 6.0A ± 10% or 4.0A ± 10% or 3.0A ± 10% or 2.5A + 10% or 1.5A + 10%
• BACK DRAIN CURRENT: <5mA
• RIPPLE: Max 150mV, 0.3A
• AMBIENT TEMP: -20°C - +40°C / -4°F - 104°F, Reduced output power at higher temperature
• BATTERY TYPES: 12V & 24V lead-acid batteries (WET, MF, AGM and GEL)

TRBM-1224-6A-English/Spanish Product Manual
