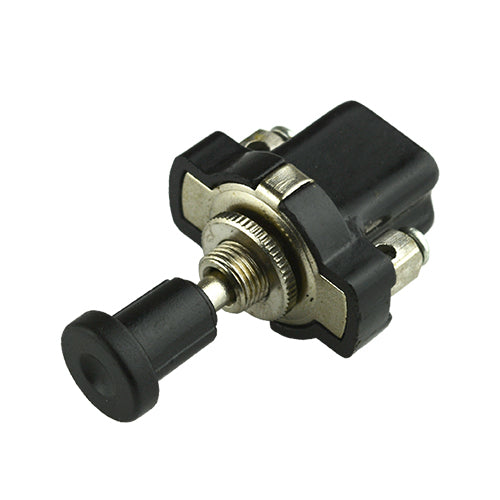

SPST Universal Push-Pull Switch (EC-PHPL10A12V)

Description:

The SPST Universal Push-Pull Switch offers reliable and durable on/off control for a wide range of applications. Its compact design and secure mounting features make it ideal for tight spaces or limited room, while its high-quality materials ensure long-lasting performance. It is easy to install and perfect for professional and DIY projects.

Specifications:

• MOUNTING COMPATIBILITY & STABILITY: The SPST Universal Push-Pull Switch (EC-PHPL10A12V) requires an 8mm mounting hole diameter for compatibility with various panels or surfaces. Its 13mm thread length ensures secure installation and stability, preventing loosening during use. With an overall height of 17mm, it offers a compact, low-profile design ideal for tight spaces or panels with limited room.
• ELECTRICAL RATINGS: The SPST Universal Push-Pull Switch (EC-PHPL10A12V) is designed to handle electrical loads of up to 10A at 12VDC and 6A at 30VDC, making it suitable for a wide range of applications, including automotive and other DC systems.
• DURABLE CONSTRUCTION: The EC-PHPL10A12V is constructed from high-quality materials, typically including durable plastic for the housing and reliable metal for the contact points, ensuring long-lasting performance and resistance to wear.
• VERSATILE FUNCTIONALITY: The SPST Universal Push-Pull Switch (EC-PHPL10A12V) is ideally suited for controlling the high and low beams of your automobile headlights, thereby enhancing driving safety and convenience. Its versatility extends to other applications, such as controlling doors, auxiliary lights, and other electrical accessories in vehicles or light-duty machinery.
• EASY INSTALLATION: The SPST Universal Push-Pull Switch (EC-PHPL10A12V) features a straightforward push-pull mechanism and comes with easy-to-follow installation instructions, making it a DIY-friendly option for users of various skill levels.
• CONTACT RESISTANCE: < 50MΩ
• INSULATION RESISTANCE: >500VDC 1000MΩ Minute
• DIELECTRIC STRENGTH: >1500VAC, 1 Minute
• OPERATING TEMPERATURE: -25°C~+85°C
• MECHANICAL LIFE: >50000 CYCLES
• ELECTRICAL LIFE: >10000 CYCLES
