Installation Solution

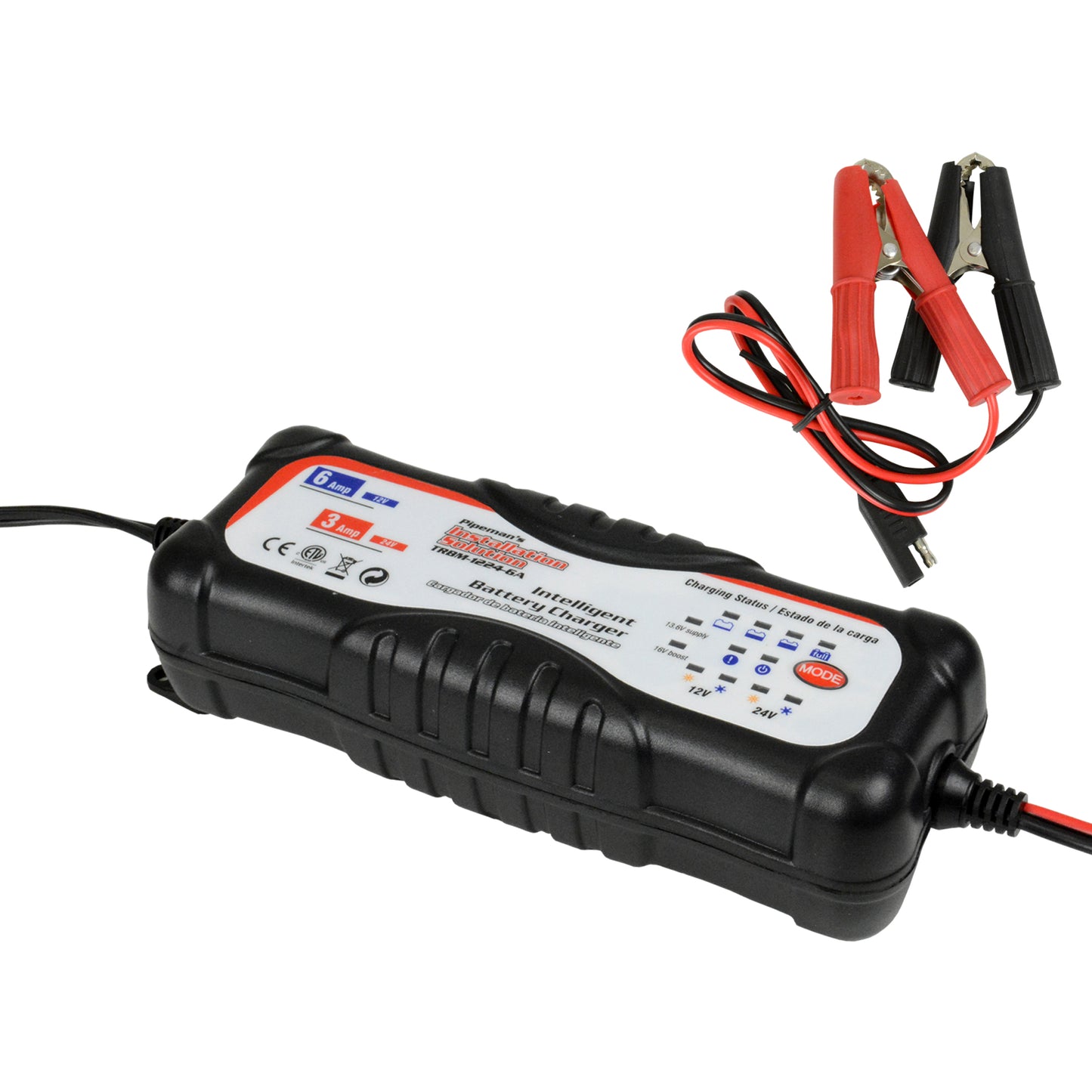

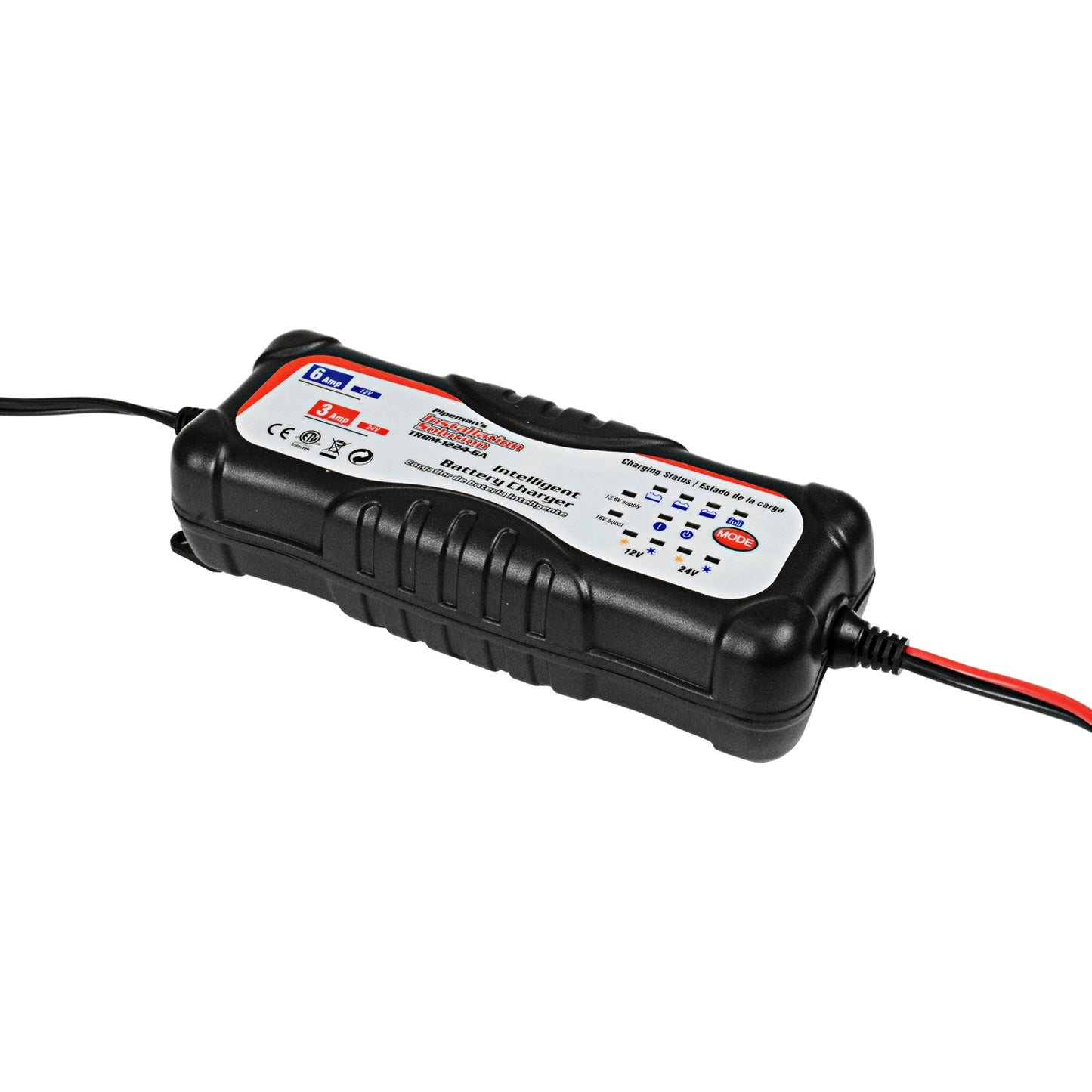

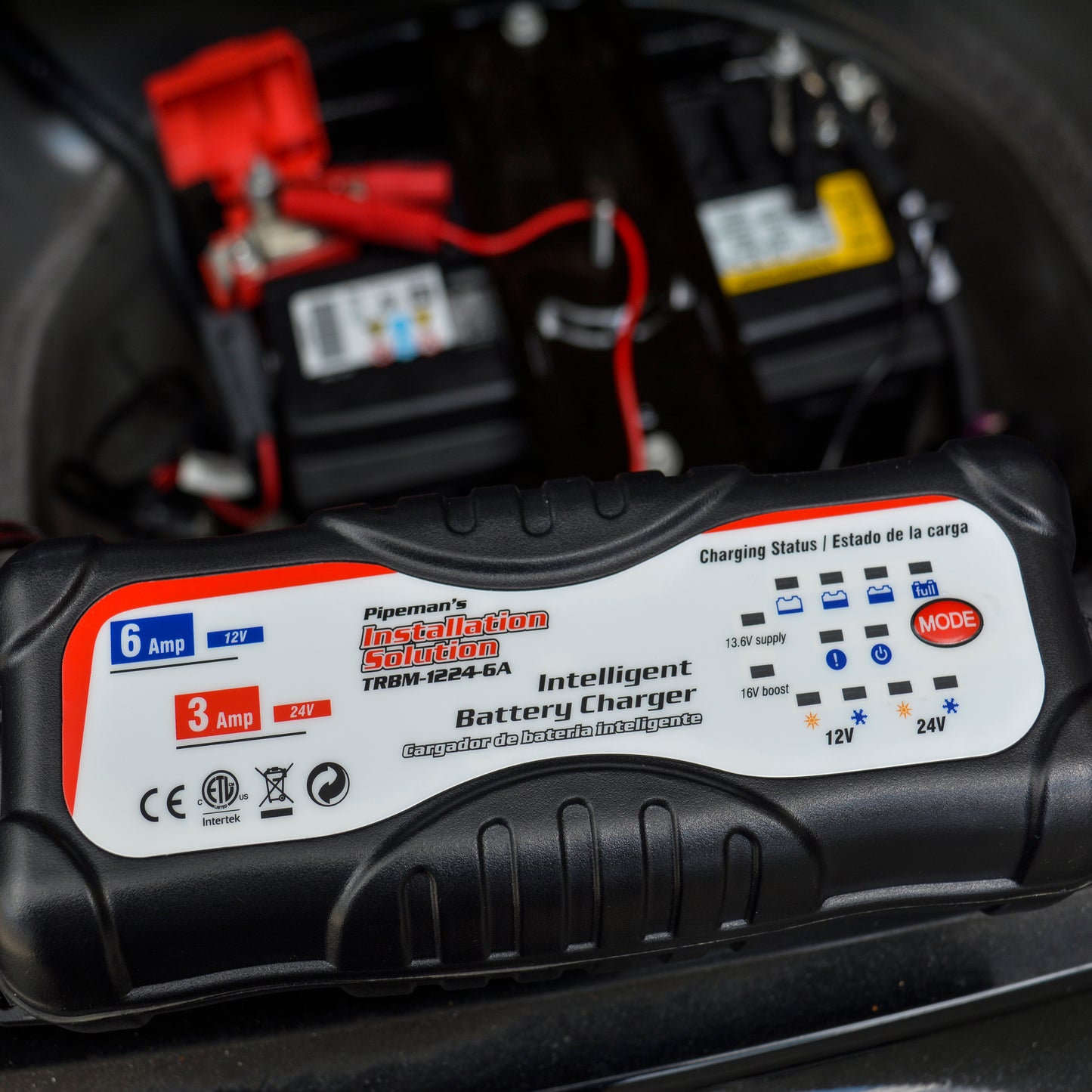

Intelligent Battery Charger (TRMB-1224-6A)

Intelligent Battery Charger (TRMB-1224-6A)

Regular price $71.99 USD
Regular price Sale price $71.99 USD
Sale Sold out


The Intelligent Battery Charger works with both 110V or 230V outlets, automatically selecting between 12V and 24V output. It's highly efficient, with charging voltages and currents adjusted for various lead-acid battery types. It's designed to withstand tough conditions with IP65 protection against dust and splashes.


Product Specifications:

  • INPUT VOLTAGE: 110V AC, 60Hz or 230V AC, 50Hz
  • OUTPUT VOLTAGE: 12V & 24V (auto – select)
  • EFFICIENCY: >75%
  • CHARGING VOLTAGE: 28.8V ± 0.25V, or 29.4V ± 0.25V or 14.4V ± 0.25V or 13.6V ± 0.25V or 16.5V ± 0.25V
  • CHARGING CURRENT: 6.0A ± 10% or 4.0A ± 10% or 3.0A ± 10% or 2.5A + 10% or 1.5A + 10%
  • RIPPLE: Max 150mV, 0.3A
  • AMBIENT TEMP: -20°C ~ +40°C / -4°F ~ 104°F, Reduced output power at higher temperature
  • BATTERY TYPES: 12V & 24V lead-acid batteries (WET, MF, AGM and GEL)
  • HOUSING PROTECTION: IP65 (Dust and Splash proof)
