Vinyl Butt Connectors (IS-BT Series)

Description

Experience exceptional conductivity and reliable wire crimping with our Vinyl Butt Connector made of high-quality red copper. Guaranteeing electrical safety, this product boasts an insulated PVC sleeve with a flame retardant and electric shockproof design that meets standard guidelines. Easily crimp and connect with this terminal - just have your crimper ready! Discover the potential of your electrical projects with this must-have and versatile product!

Specifications

• QUALITY TINNED RED COPPER & PVC INSULATION: Constructed from high-quality red copper, our vinyl butt connector guarantees superior conductivity and high resistance to corrosion and oxidation. In addition, the PVC insulated sleeve is both flame retardant and electric shockproof, ensuring both durability and safety

• AWG	Wire Range (mm²)	Dimension (mm) middle joint l x DΦ x L	Max Current (A)

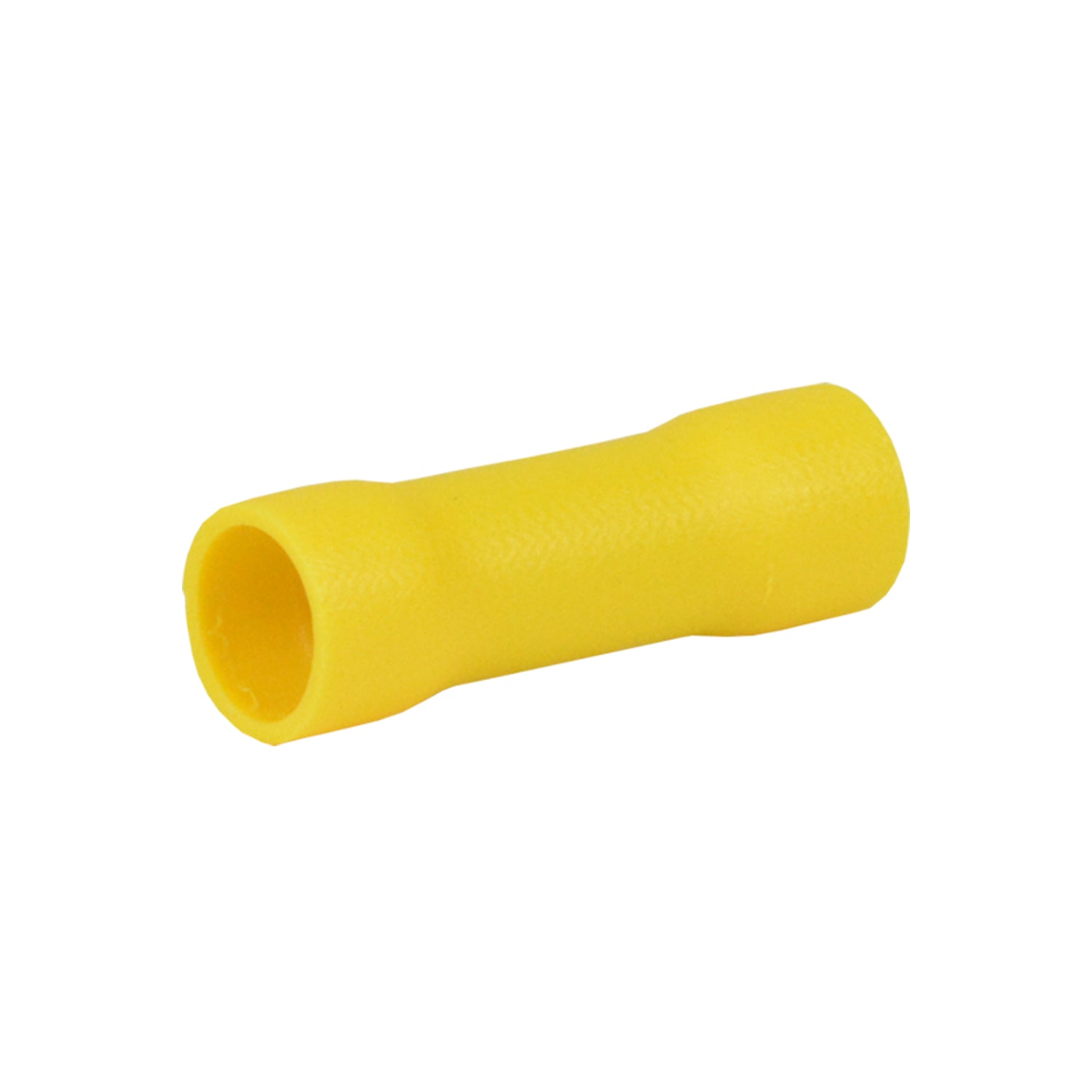

  12-10 (Yellow)	4-6	15 x 3.4 x 26	48A

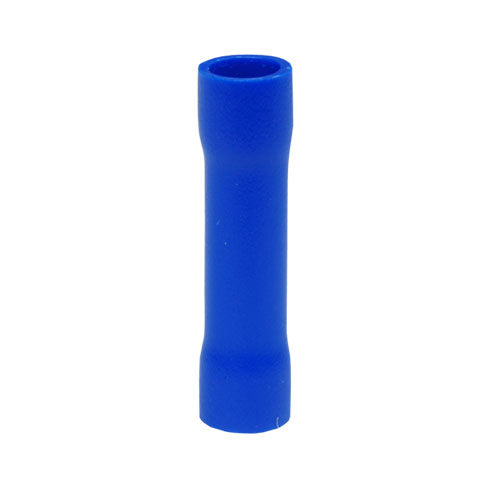

  16-14 (Blue)	1.5-2.5	15 x 2.3 x 26	27A

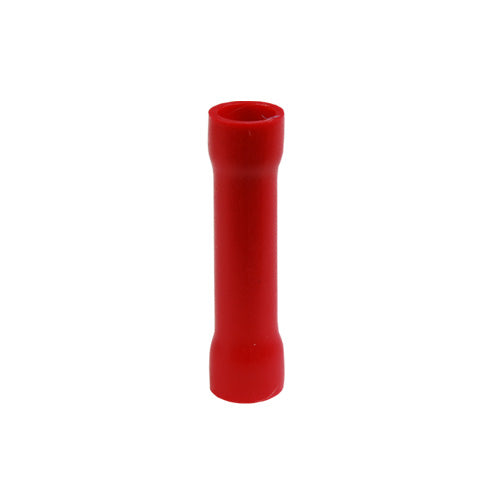

  22-16 (Red)	0.5-1.5	15 x 1.7 x 26	19A

• EFFORTLESS INSERTION & STRONG CRIMPING: Our butt connector features flared barrel design to ensure easy insertion and strong wire crimping. Rest assured that once crimped, your wire will not be pulled out
• EASY TO USE: Insert stripped wire into one side of the splice barrel, then use a crimper for quick and accurate crimping. Repeat the process on the other side of the butt connector to finish proper wire connection
• WIDE APPLICATION: This PVC butt connector complies with all standard electrical guidelines for maximum safety and protection, making it a popular choice for both consumer and industrial use. It is ideal for connecting and repairing electrical wires and cables, as well as installing accessories for cars and processing car wiring harnesses
• SOLD IN: Packs of 100 pcs
